Current vs. Voltage Measurement: Key Differences

This article explores the fundamental differences between current and voltage measurements, outlining the methods and equipment used for each. We’ll delve into how these measurements are performed and the crucial factors that ensure accuracy.

Current Measurement

According to the principle of current continuity, current remains consistent throughout a single loop circuit. To measure current, we use an ammeter, which is always connected in series with the circuit element through which we want to measure current flow.

Image alt: current measurement

Methods of Current Measurement

There are two primary ways to measure current:

1. Contactless Method: This method leverages the magnetic field generated by current flowing through a conductor. The magnetic field causes a compass needle or similar indicator to rotate. While simple, this approach isn’t very precise, especially with low currents. It is generally more suited for measuring higher current values.

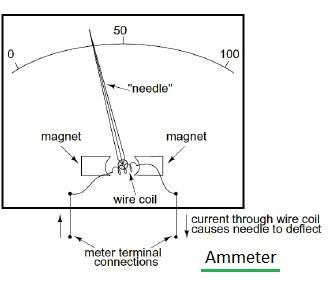

2. Using an Ammeter or Multimeter: This is the most common and accurate method. An ammeter utilizes the magnetic field produced by the current to deflect a needle on a scale. The deflection is directly proportional to the strength of the magnetic field, and thus the current. In circuit diagrams, an ammeter is represented by a circle containing the letter “A”.



   Image alt: Ammeter used for current measurement

   How to use an Ammeter:

   • The circuit is broken at the point where the current needs to be measured.
   • The ammeter is inserted into the circuit, effectively becoming part of the current’s path.
   • The needle’s deflection indicates the current flowing through the circuit.

It is important to understand that the current measured by the ammeter is the same as the current flowing through the circuit element being measured. This method works for any circuit component, not just resistors.

Voltage Measurement

Voltage, on the other hand, is measured across or in parallel with the circuit element of interest. We use a voltmeter for this purpose.

Image alt: voltage measurement

When a voltmeter is connected to a circuit, a small current (Iv) flows through the voltmeter itself. According to the law of charge conservation, this small current reduces the current in the circuit, and can change the voltage V you are trying to measure. This is why it is crucial that the resistance of the voltmeter be significantly higher than the resistance of the circuit element being tested to have an accurate reading.

Key Differences: Ammeter vs. Voltmeter

Here’s a breakdown of the key differences between ammeters and voltmeters:

• Resistance:
  • An ammeter should have a very low resistance (Rₐ) compared to the circuit element’s resistance (R) to minimize its impact on the current.
  • A voltmeter should have a very high resistance (Rᵥ) compared to the circuit element’s resistance (R) to avoid drawing significant current and altering the voltage.
• Connection:
  • An ammeter is connected in series with the circuit element.
  • A voltmeter is connected in parallel with the circuit element.
• Measurement Error:
  • Current measurement error: ΔI/Iₘ = (I/Iₘ)-1 = Rₐ / R
  • Voltage measurement error: ΔV/Vₘ = (V/Vₘ)-1 = R / Rᵥ

By understanding these fundamental differences, you can accurately measure current and voltage, ensuring that your circuits function as expected.
