Understanding LED Thermal Resistance

Thermal performance is absolutely crucial in the design of any lighting system. A well-designed system that manages heat effectively not only boasts higher efficacy, meaning it produces more light with less energy, but also ensures long-term reliability. Let’s delve into the concept of LED thermal resistance.

What is LED Thermal Resistance?

The thermal resistance of an LED is a measure of how well it can dissipate heat. It’s essentially the opposition to heat flow within the device. It’s defined as the ratio of the change in the device’s temperature (ΔT) to the applied electrical power (P).

Think of it like this: the higher the thermal resistance, the harder it is for heat to escape from the LED, and the hotter it will get.

The Equation for LED Thermal Resistance

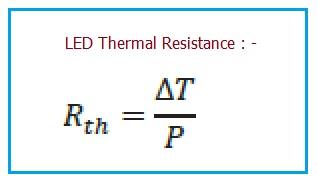

The LED thermal resistance is represented by the following equation:

Rth = ΔT / P

Where:

• Rth is the thermal resistance, typically measured in °C/W or K/W (degrees Celsius per watt or Kelvin per watt).
• ΔT is the change in temperature, usually the difference between the junction temperature and a reference point (like the case temperature).
• P is the electrical power applied to the LED.

Why is Thermal Resistance Important?

A particularly useful thermal resistance to consider is the junction-to-case thermal resistance (Rth J-C). This value tells us how well heat is transferred from the LED die (the light-emitting part) to the package case. This is crucial because the case is often where the heat is then transferred to a heatsink.

Here’s a breakdown:

• LED Junction: This is where the light is generated and where most of the heat is produced.
• LED Case: The outer part of the LED package. This is where we usually measure the temperature.
• Heat Sink: A component attached to the case to help dissipate heat into the environment.

The lower the junction-to-case thermal resistance, the more easily the heat can move away from the die and into the heatsink, resulting in a cooler and more efficient LED. In essence, a low Rth J-C is a key to a long lasting and reliable LED lighting system.
