FNBW vs HPBW: Understanding the Difference in Antenna Beamwidth

This article clarifies the difference between First Null Beamwidth (FNBW) and Half Power Beamwidth (HPBW) in antenna radiation patterns. These terms are crucial for understanding an antenna’s directivity and resolution capabilities.

Introduction to Antenna Radiation Patterns

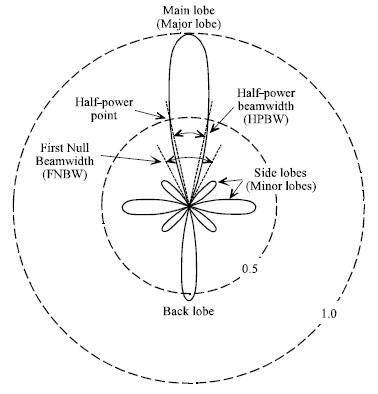

Antennas radiate energy in various directions, which is visualized through a radiation pattern. Key features of this pattern include:

• Main Lobe: The primary direction of radiation, where the antenna focuses most of its power.
• Minor Lobe: Any lobe that isn’t the main lobe.
• Side Lobe: A minor lobe radiating away from the intended direction.
• Back Lobe: The radiation lobe located directly opposite the main lobe.

Beamwidth is a general measure of an antenna’s directivity, quantified by the angular width of the main lobe. It’s usually expressed in degrees or radians and includes both FNBW and HPBW.

Antenna FNBW - First Null Beamwidth

• Definition: FNBW refers to the angular width measured between the first nulls (points of minimum radiation) or the first side lobes on either side of the main lobe.
• Significance: FNBW provides an indication of the antenna’s resolution capability. A smaller FNBW means the antenna can better separate closely spaced targets.
• Influencing Factors: The beamwidth is affected by factors like the shape of the radiation pattern, the physical dimensions of the antenna, and the wavelength of the signal.

Antenna HPBW - Half Power Beamwidth

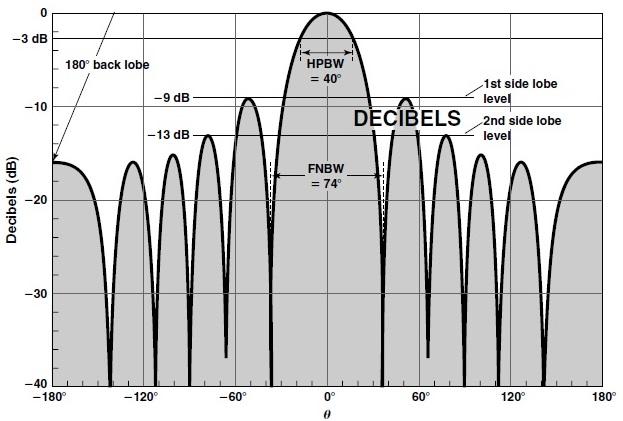

• Definition: HPBW is the angular width of the main lobe, measured between the two points where the radiated power drops to half of its maximum value. This is also known as the -3dB beamwidth.
• Significance: Like FNBW, HPBW also reflects the antenna’s ability to resolve between two closely spaced sources.
• Relationship with FNBW: HPBW is roughly half of the FNBW (HPBW ≈ FNBW/2). Usually, (FNBW/2) is slightly greater than the HPBW.
• Resolution: Two sources separated by an angular distance equal to or greater than the antenna’s HPBW can generally be distinguished by the antenna, assuming a uniform distribution.

Key Differences Summarized

In essence:

• FNBW measures the angular width between the first nulls, providing a broader view of the main lobe.
• HPBW measures the angular width between the half-power points, giving a more refined indication of the antenna’s resolution capability.

While both relate to the beamwidth, HPBW offers a more practical measure for determining how well an antenna can distinguish between separate signal sources. Understanding both FNBW and HPBW helps in properly selecting antennas for specific applications that require a certain level of precision.
