Oval Gear Flowmeter: Advantages and Disadvantages

This article explores the pros and cons of oval gear flowmeters, providing a comprehensive look at their benefits and drawbacks.

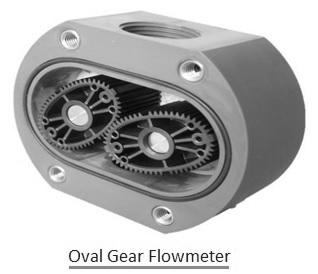

What is an Oval Gear Flowmeter?

Oval gear flowmeters are positive displacement flowmeters that use two intermeshed, oval-shaped gears. Here’s how they work:

• Fluid Trapping: The gears rotate, trapping fluid between their teeth and the meter’s outer walls.
• Rotation and Measurement: The pressure of the fluid causes the gears to rotate. Each rotation corresponds to a specific volume of fluid passing through the meter. By counting the revolutions, the flow volume is determined.
• Calibration Sensitivity: If the meter is calibrated for a specific fluid, readings may be slightly higher for other fluids.
• Modern Designs: Some newer designs use servo motors to drive the gears, eliminating the pressure drop across the meter and reducing the force needed to turn the gears.

Advantages of Oval Gear Flowmeters

Here are the key benefits of using an oval gear flowmeter:

• High Accuracy: Oval gear flowmeters are known for their high measurement accuracy, typically around 0.25%.
• Suitable for High Viscosity Liquids: They excel at measuring the flow of highly viscous fluids.
• Bi-Directional Flow: These meters can operate in both forward and reverse directions.
• No Flow Conditioning Required: They don’t need specific inlet and outlet sections, as they are not affected by flow profiles.
• No External Power Needed: Many models do not require an external power source to operate.
• High Temperature and Pressure Tolerance: They can withstand high temperatures (up to 300°C) and pressures (up to 10 MPa).
• Versatile Construction: A wide range of materials can be used for their construction, making them adaptable to different applications.

Disadvantages of Oval Gear Flowmeters

Despite their advantages, oval gear flowmeters have some limitations:

• Liquid-Only Application: They are designed for liquids and are not suitable for gases.
• High Pressure Drop: They can cause a significant pressure drop in the flow line.
• Mechanical Wear: The moving parts are subject to wear and tear over time.
• Reduced Accuracy at Low Viscosities: Accuracy decreases with low viscosity fluids due to increased gap losses.
• Sensitivity to Contamination: They are susceptible to damage and inaccuracies from contaminants; a filter is usually necessary.
• Potential for Blockage: Solid impurities can block the flow at zero flow rates.
• Overload Sensitivity: They are sensitive to overloads which may cause inaccurate readings or damage.
• Difficult Maintenance: Monitoring and maintenance can be complex and difficult.
• Pulsating Flow: The alternating drive action of the gears can cause flow pulsations.
• Viscosity Affects Leakage: The fluid’s viscosity can impact leakage or slip flow, potentially affecting accuracy.
