LTE Testing: A Comprehensive Guide

This page covers LTE testing. It describes LTE device transmitter and receiver testing, including RF and baseband (PHY) conformance cases. LTE test tools from leading vendors are also mentioned.

LTE (Long Term Evolution) is the fourth generation of cellular technology, primarily developed to provide high-speed internet access for mobile and fixed computing devices.

LTE System Architecture

An LTE system comprises two main elements:

• UE (User Equipment): These are user terminals such as mobile phones, tablets, or laptops.
• eNodeB: This is the base station, similar to those used in other wireless cellular networks.

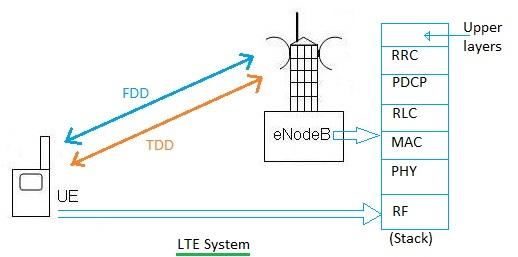

UEs and eNodeBs communicate using either TDD or FDD frame structures, as determined by the LTE network planning. This is illustrated in Figure 1.

LTE utilizes OFDMA (Orthogonal Frequency-Division Multiple Access) in the downlink (eNodeB to UE) and SC-FDMA (Single-Carrier Frequency-Division Multiple Access) in the uplink (UE to eNodeB). The fundamental allocation unit in LTE is the resource block (RB), consisting of 12 subcarriers on the frequency axis and 7 symbols on the time axis.

LTE Testing Complexity

Due to the complex nature of LTE systems, which involve logical, transport, and physical channels, along with unique protocol layers at each system entity, testing is a complex undertaking. This involves both module-level and system-level testing. LTE testing is performed across various protocol stack layers, including RF (Radio Frequency), PHY (Physical Layer or Baseband), protocol layers (MAC, RLC, PDCP, RRC), and upper layers (IP and above).

Conformance tests for the base station (eNodeB) are defined in TS-36.141, while conformance tests for the UE are defined in TS-36.521.1. 3GPP documents TS-36.104 and TS-36.101 define transmit/receive radio conformance tests for eNodeB and UE, respectively.

LTE UE RF/PHY Transmitter and Receiver Testing

RF Transmitter Tests

• Maximum/Minimum output power
• Power control
• EVM (Error Vector Magnitude)
• Frequency error
• Spectral emission mask
• Occupied bandwidth
• ACLR (Adjacent Channel Leakage Ratio)
• Spurious emissions
• Intermodulation tests

RF Receiver Tests

• Sensitivity
• Maximum input level
• Adjacent channel selectivity
• In-band and out-of-band blocking
• Intermodulation tests
• Performance-related tests
• Demodulation tests for various LTE channels

PHY Tests

• RSRP (Reference Signal Received Power)
• RSRQ (Reference Signal Received Quality)
• RSSI (Received Signal Strength Indicator)
• CPICH Ec/No (Common Pilot Channel Energy per Chip to Noise Power Spectral Density Ratio)

LTE eNodeB RF/PHY Transmitter and Receiver Testing

RF Transmitter Tests

• Output power
• Control range
• EVM
• Frequency error
• Downlink reference signal power
• Occupied bandwidth
• ACLR
• Spurious emissions
• Intermodulation tests

RF Receiver Tests

• Sensitivity
• Selectivity
• Blocking
• Dynamic range
• Spurious emissions
• Intermodulation tests
• Various performance-related tests as defined in 3GPP TS 36.141

PHY Tests

• Downlink RS Tx Power
• Interference Power
• Thermal Noise Power

LTE Test Tools

The following table lists LTE test tools used for radio conformance and protocol conformance testing of LTE-compliant UEs and eNodeBs.

Benefits of LTE Test tools

Following are some of the advantages of LTE test tools in T&M domain.

1. Validates LTE network quality, including signal strength, throughput and latency, to ensure optimal performance.
2. Performs functional, load, conformance and interoperability testing for LTE networks and devices.
3. Detects interference, coverage gaps, handover failures and other network issues for quick resolution.
4. Tests LTE enabled devices to verify compliance with 3GPP standards, ensuring compatibility and reliability.
5. Assists in site acceptance, drive testing and network optimization to improve coverage and capacity.
6. Supports Carrier Aggregation & MIMO Testing which helps to evaluate these advanced LTE features for better network efficiency.
7. Reduces manual effort through automation, increasing test accuracy and efficiency in network and device validation.
8. Ensures LTE networks and devices meet regulatory and certification requirements.

Conclusion

LTE Test Tools play a vital role in the Test & Measurement (T&M) industry, ensuring the performance, reliability and compliance of LTE networks and devices. These tools help operators and manufacturers optimize network deployment and device functionality. Their ability to automate processes and identify issues efficiently makes them essential for maintaining high quality LTE services in a rapidly evolving telecom landscape.
