This article explores the pros and cons of using manometers, devices that measure pressure by balancing it against the gravitational force of a liquid column. Manometers are versatile tools capable of measuring dynamic and differential pressures, across a wide range from low to high (starting around 0.1 NM/m²). Mercury is a common choice as a manometric fluid because of its broad temperature range (-20°C to +350°C). Ideal manometric fluids should have properties like low viscosity, a low thermal coefficient of expansion, be non-corrosive and non-sticky, have low surface tension, and low vapor pressure.

Here’s a quick overview of common manometer types:

  • U-tube manometer
  • Well-type manometer
  • Raised Well manometer
  • Inclined Tube manometer

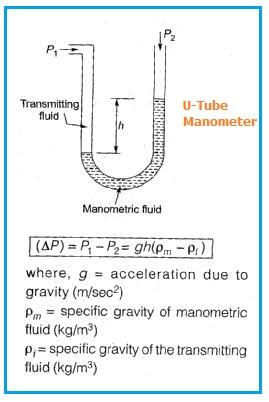

U-tube Manometer

Advantages of Manometers

Let’s delve into the benefits of using Manometers:

  • Simple Construction: Manometers are known for their straightforward design, making them relatively easy to understand and maintain.
  • High Accuracy: These devices offer a high degree of accuracy in pressure measurement, which is essential in many applications.
  • Versatile Measurement: Manometers are not limited to pressure; they can also be used to measure temperature, flow, and other process variables, making them highly adaptable.
  • No Power Source Required : Unlike digital pressure gauges, most manometers do not need electricity or batteries to operate.
  • Wide Range of Applications : Suitable for measuring gas, liquid, and differential pressures in HVAC, laboratory and industrial setups.
  • Cost Effective : Compared to digital pressure sensors, manometers are relatively inexpensive and require minimal maintenance.

Disadvantages of Manometers

Following are some of the drawbacks of Manometers:

  • Fragile and Prone to Breakage: Glass tubes in U-tube manometers are delicate and can break easily if mishandled.
  • Limited Portability: Traditional liquid filled manometers are bulky and not as portable as digital pressure gauges.
  • Difficult to Read in Dynamic Conditions: Rapid pressure fluctuations can make it challenging to get stable readings.
  • Limited to Low and Medium Pressures: Not suitable for measuring very high pressures, as the liquid column height becomes impractical.
  • Affected by Temperature Changes: Variations in temperature can alter the density of the liquid, leading to minor inaccuracies in pressure readings.
