Advantages and Disadvantages of Manometers

manometers pressure measurement fluid mechanics instrumentation measurement devices

This article explores the pros and cons of using manometers, devices that measure pressure by balancing it against the gravitational force of a liquid column. Manometers are versatile tools capable of measuring dynamic and differential pressures, across a wide range from low to high (starting around 0.1 NM/m²). Mercury is a common choice as a manometric fluid because of its broad temperature range (-20°C to +350°C). Ideal manometric fluids should have properties like low viscosity, a low thermal coefficient of expansion, be non-corrosive and non-sticky, have low surface tension, and low vapor pressure.

Here’s a quick overview of common manometer types:

  • U-tube manometer
  • Well-type manometer
  • Raised Well manometer
  • Inclined Tube manometer

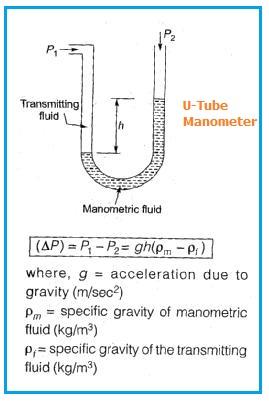

U-tube Manometer

Advantages of Manometers

Let’s delve into the benefits of using Manometers:

  • Simple Construction: Manometers are known for their straightforward design, making them relatively easy to understand and maintain.
  • High Accuracy: These devices offer a high degree of accuracy in pressure measurement, which is essential in many applications.
  • Versatile Measurement: Manometers are not limited to pressure; they can also be used to measure temperature, flow, and other process variables, making them highly adaptable.
  • No Power Source Required : Unlike digital pressure gauges, most manometers do not need electricity or batteries to operate.
  • Wide Range of Applications : Suitable for measuring gas, liquid, and differential pressures in HVAC, laboratory and industrial setups.
  • Cost Effective : Compared to digital pressure sensors, manometers are relatively inexpensive and require minimal maintenance.

Disadvantages of Manometers

Following are some of the drawbacks of Manometers:

  • Fragile and Prone to Breakage: Glass tubes in U-tube manometers are delicate and can break easily if mishandled.
  • Limited Portability: Traditional liquid filled manometers are bulky and not as portable as digital pressure gauges.
  • Difficult to Read in Dynamic Conditions: Rapid pressure fluctuations can make it challenging to get stable readings.
  • Limited to Low and Medium Pressures: Not suitable for measuring very high pressures, as the liquid column height becomes impractical.
  • Affected by Temperature Changes: Variations in temperature can alter the density of the liquid, leading to minor inaccuracies in pressure readings.
