Zener Diode Testing: A Comprehensive Guide

This article delves into the world of zener diode testing, covering the essential test parameters and measurement techniques used to evaluate these unique components. We’ll explore the test setups and common failure modes that help determine if a zener diode is in good working order.

What is a Zener Diode?

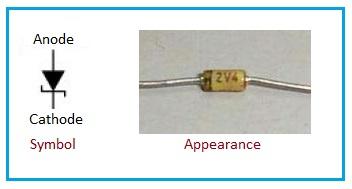

• A zener diode is a specialized type of p-n junction diode, heavily doped to exhibit unique characteristics.
• Unlike standard diodes, zener diodes are designed to operate in reverse bias.

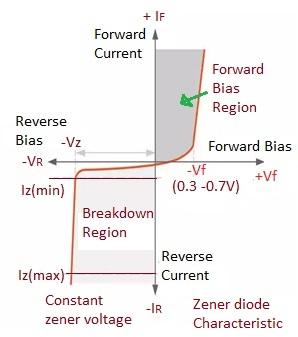

• Once the reverse voltage reaches the zener voltage, current flows from the cathode to the anode. This operation takes place in the breakdown region of its characteristic curve.

• Zener diodes are intentionally used in the breakdown region, provided a series resistor limits the current.
• As the reverse voltage (VR) increases, the reverse current remains negligible until VR reaches the breakdown voltage, known as the zener voltage (VZ). Beyond this point, the reverse current (IR) sharply increases.
• If VR decreases below VZ, the reverse current becomes negligible again.
• Zener diodes are available in a variety of standard voltages, such as 3V, 3.9V, 5.1V, 6.2V, 9.1V, 10V, and 15V.

Zener Diode Measurements

Typical parameters measured during zener diode testing include:

• Zener Voltage (Vz): The reverse breakdown voltage.
• Current at Vz: The reverse current flow at the zener voltage.
• Power Rating: The maximum power the diode can dissipate.
• Zener Resistance (Rz): The dynamic resistance in the breakdown region.
• Voltage Tolerance: The allowable variation from the nominal zener voltage.
• Temperature Stability: How the zener voltage changes with temperature.
• Junction Temperature: The operating temperature of the diode’s junction.
• Package Type: The physical casing of the zener diode.

Zener Diode Testing

Here’s a breakdown of the common tests performed:

Test Setup

The following diagram shows the basic test setup used to evaluate zener diodes.

Common failures observed in zener diodes include:

• Open Diode
• Shorted Diode (anode to cathode)
• Conducting current at a lower voltage than rated

Zener Diode Resistance Test Using a Multimeter

1. Set your multimeter to resistance mode or diode test mode.
2. Connect the positive probe to the anode of the zener diode, and the negative probe to the cathode.
   • In this forward bias configuration, the multimeter should read a relatively low resistance (approximately 450 kΩ).
3. Reverse the probes, connecting the negative probe to the anode and the positive probe to the cathode to reverse bias the diode.
   • The multimeter should now read a higher resistance (around 1 MΩ).
4. Interpreting results:
   • Open Diode: If the multimeter reads high resistance in both directions, the zener diode is open, and therefore defective.
   • Shorted Diode: If the multimeter reads low resistance in both directions, the zener diode is shorted and defective.

Zener Diode Voltage Test Using a Multimeter

1. Set your multimeter to voltmeter mode.
2. Connect the zener diode in reverse bias with a series resistor, as shown in the diagram above.
3. Measure the voltage across the zener diode.
   • A zener diode in good condition should measure a voltage close to its rated zener voltage (e.g. around 5.1V for a 5.1V diode).
4. Interpreting results:
   • Open Diode: If the multimeter reads a very high voltage or close to the supply voltage, the zener diode is open and should be replaced.
   • Shorted Diode: If the multimeter reads a voltage much lower than the rated voltage (close to 0V), the zener diode is shorted, defective and should be replaced.

By performing these tests, you can effectively evaluate the condition of zener diodes and ensure the reliability of your circuits.
